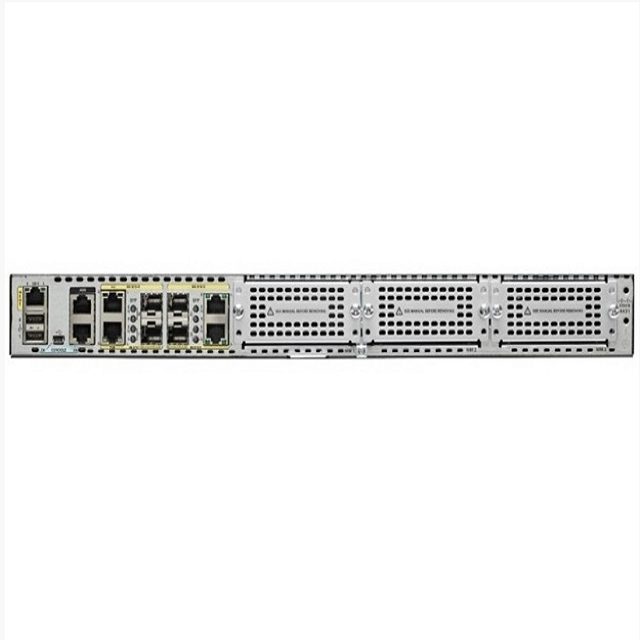

Cisco ISR 4431 Sec bundle w/SEC license

Warranty: 1 year Networking Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex etc
Repairs: We offer repair service when necessary
Exchange: Exchange credit for your defective unit available
Send Inquiry


ISR4431-SEC/K9 Overview

Cisco ISR4431-SEC/K9 is the Cisco ISR4431/k9 router with Security Bundle. Its other specifications are the same as ISR4431/k9.





Cisco ISR4431-SEC/K9 Specification


Cisco ISR4431/K9 with Security Bundle

Aggregate Throughput

500Mbps to 1Gbps

Total onboard WAN or LAN 10/100/1000 ports


RJ-45-based ports


SFP-based ports


Enhanced service-module slots


Doublewide service-module slots


NIM slots


OIR (all I/O modules)


Onboard ISC slot


Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)


Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)


Default memory DDR3 ECC DRAM (data plane)

2 GB

Maximum memory DDR3 ECC DRAM (data plane)

2 GB

Default memory DDR3 ECC DRAM (control/services plane)

4 GB

Maximum memory DDR3 ECC DRAM (control/services plane)

16 GB

Default flash memory

8 GB

Maximum flash memory

32 GB

External USB 2.0 slots (type A)


USB console port -type B mini (up to 115.2 kbps)


Serial console port – RJ45 (up to 115.2 kbps)


Serial auxiliary port – RJ45 (up to 115.2 kbps)


Power-supply options

Internal: AC, DC, and PoE

Redundant power supply

Internal: AC, DC, and PoE

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

3 to 1.3A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power (no modules) (watts)


Maximum power with AC power supply (watts)

250 (no PoE)

Maximum power with PoE power supply (platform only) (watts)

500 with PoE redundant

Maximum endpoint PoE power available from PoE power supply (watts)

250 W with optional redundancy
