Cisco ISR 4321 AX Bundle w/APP, SEC lic

Warranty: 1 year Networking Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex etc
Repairs: We offer repair service when necessary
Exchange: Exchange credit for your defective unit available
Send Inquiry
分类: 标签:

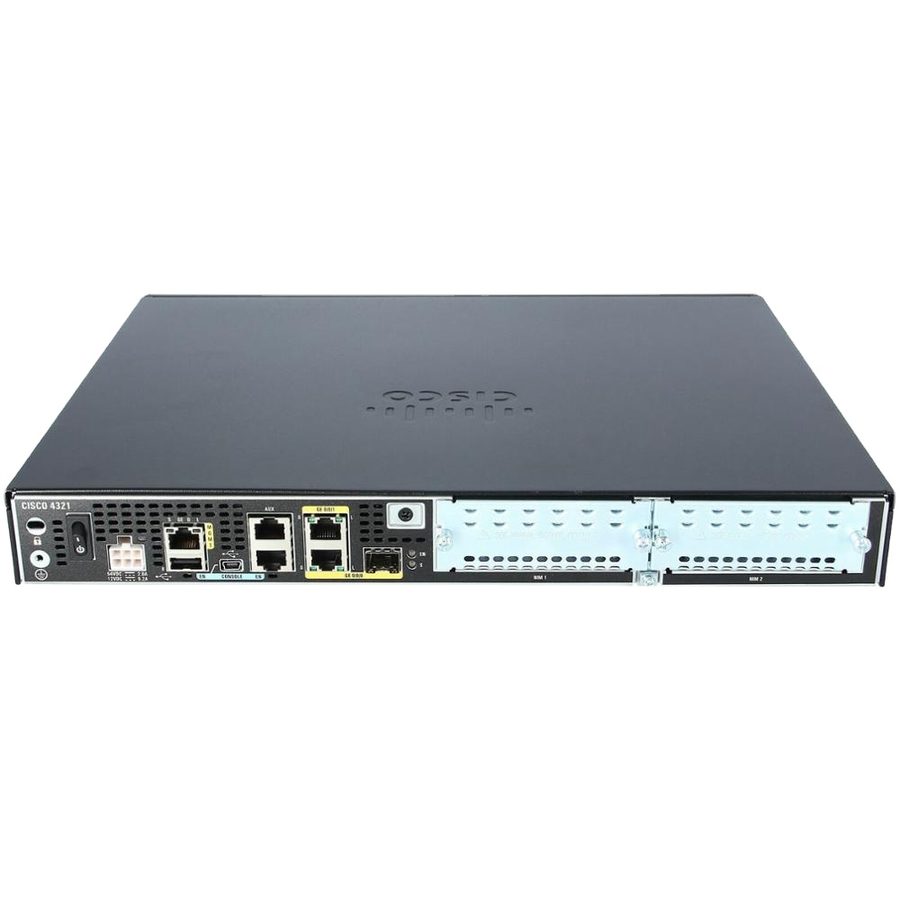

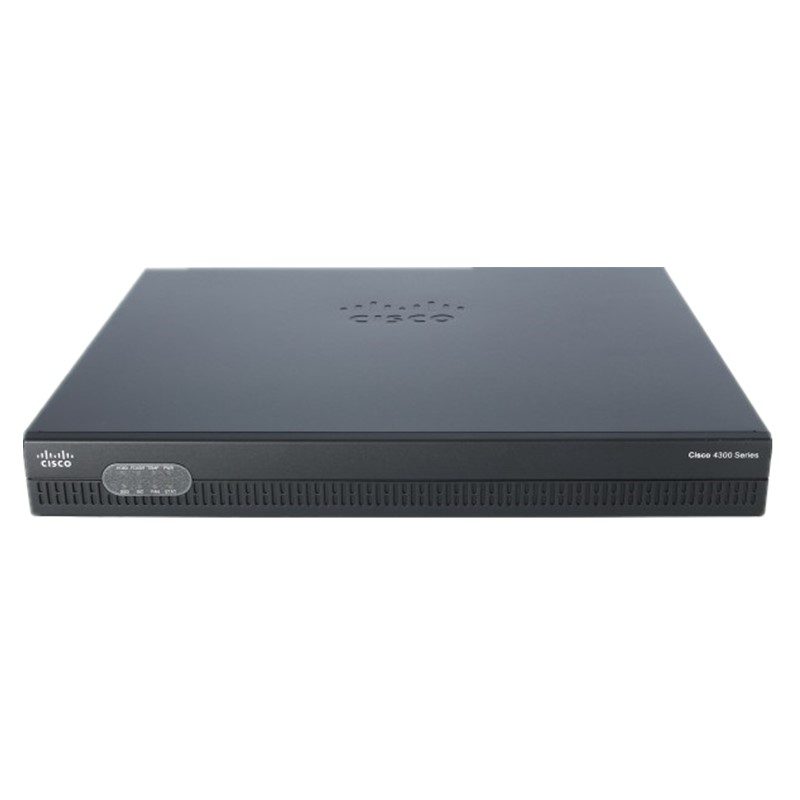

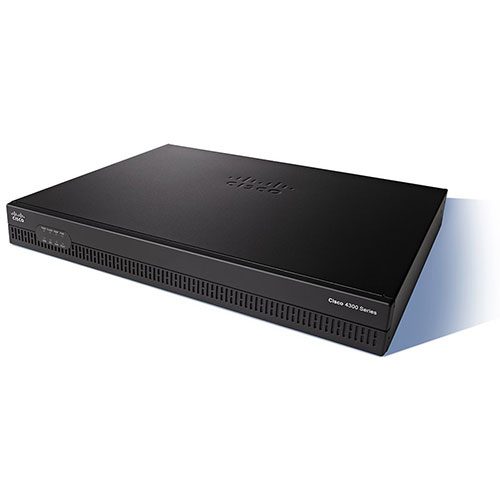

ISR4321-AX/K9 Overview

ISR4321-AX/K9 intelligent WAN bundle combines security features, application experience and Wide Area Application Services (WAAS) features together into one platform. The intelligent WAN bundle optimizes network traffic across the “best” link based on applications and monitors network conditions to deliver the best performance as possible. In this platform, you get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links – control that you need as your branches conduct greater volumes of mission-critical business.

ISR4321-AX/K9 comes with IP base image, Security, AppX licensing for 200 TCP connection resources for ISR WAAS optimization and 4-GB DRAM, 4GB Flash memory, 50Mbps WAN bandwidth by default, to enable the ISR WAAS service, update memory, flash memory and hard drive is required, vWAAS service is not available on this platform.






ISR4321-AX/K9 Specification


50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC

Aggregate Throughput

50 Mbps to 100 Mbps

Total onboard WAN or LAN 10/100/1000 ports


RJ-45-based ports


SFP-based ports


Enhanced service-module slots


Doublewide service-module slots


NIM slots


OIR (all I/O modules)


Onboard ISC slot


Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

8 GB

Default memory DDR3 ECC DRAM (data plane)


Maximum memory DDR3 ECC DRAM (data plane)


Default memory DDR3 ECC DRAM (control/services plane)


Maximum memory DDR3 ECC DRAM (control/services plane)


Default flash memory

4 GB

Maximum flash memory

8 GB

External USB 2.0 slots (type A)


USB console port -type B mini (up to 115.2 kbps)


Serial console port – RJ45 (up to 115.2 kbps)


Serial auxiliary port – RJ45
(up to 115.2 kbps)


Power-supply options

External: AC and PoE

Redundant power supply


AC input voltage

AC input voltage

100 to 240 VAC Autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

1.5 to 0.6A

AC input surge current

90 A peak and less than 3 Arms per half cycle

Typical power (no modules) (watts)


Maximum power with AC power supply (watts)


Maximum power with PoE power supply (platform only) (watts)


Maximum endpoint PoE power available from PoE power supply (watts)





Product Name Detail
CON-OSE-ISR4321AX SNTC-8X5X4OS Cisco ISR 4321 AX Bundle w/ APP.SEC lic
CON-OSP-ISR4321AX SNTC-24X7X4OS Cisco ISR 4321 AX Bundle w/ APP.SEC lic
CON-OS-ISR4321AX SNTC-8X5XNBDOS Cisco ISR 4321 AX Bundle w/ APP.SEC lic
CON-PREM-ISR4321AX SNTC-24X7X2OS Cisco ISR 4321 AX Bundle w/ APP.SEC lic
CON-S2P-ISR4321AX SNTC-24X7X2 Cisco ISR 4321 AX Bundle w/ APP.SEC lic
CON-SNTE-ISR4321AX SNTC-8X5X4 Cisco ISR 4321 AX Bundle w/ APP.SEC lic
CON-SNTP-ISR4321AX SNTC-24X7X4 Cisco ISR 4321 AX Bundle w/ APP.SEC lic
CON-SNT-ISR4321AX SNTC-8X5XNBD Cisco ISR 4321 AX Bundle w/ APP.SEC lic
CON-SW-ISR4321AX SNTC-NO RMA Cisco ISR 4321 AX Bundle w/ APP.SEC lic
CON-3OSP-ISR4321AX 3YR SNTC 24X7X4OS Cisco ISR 4321 AX Bundle w/APP. SEC lic


Length of contract required :
 1 Year SMARTnet
 3 Year SMARTnet
 5 Year SMARTnet



Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.


Delivery Options Estimated Delivery Time
 DHL 2-4 business days
 Fedex 2-4 business days
 Hong Kong EMS 5-10 business days
 Hong Kong Air Parcel 10-20 business days
 By Sea 10-20 business days


Above mentioned information are just for your reference only, we will keep you posted for the tracking delivery schedule.

Deliver to port:
Itech Smartnet Limited will quote all destination charge prior once we have confirmed order.

Deliver to door:
Itech Smartnet Limited is responsible for transporting goods to door after you have made the payment.

Payment Methods



100% Low Price Guarantee:

Itech Smartnet Limited provides high-quality products at low wholesale price.

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are “New Sealed” or “Used / Refurbished”.
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us to enjoy the warranty.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured.

Return Material Authorization (RMA) Process:

 Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Months

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can’t correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
