C9200-NM-4G
Next product
ISR4321-VSEC/K9
Click to enlarge

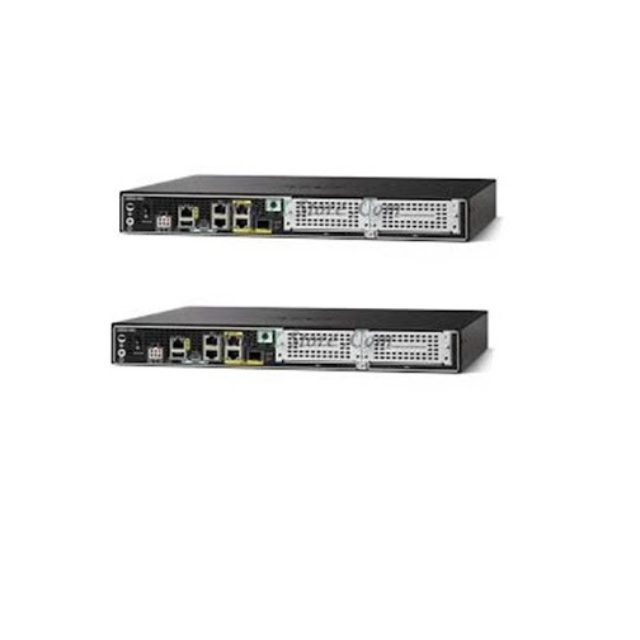

ISR4321-V/K9

Cisco ISR 4321 Bundle, w/UC License

Warranty: 1 year Networking Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex etc
Repairs: We offer repair service when necessary
Exchange: Exchange credit for your defective unit available
Send Inquiry
分类：
描述

描述

ISR4321-V/K9 Overview

Cisco Intergrated Services router ISR4321-V/K9 Voice Bundle is design to deliver advanced VOIP services to the small enterprise branch environment. Cisco ISR 4321 integrates 2 dual mode Gigabit Ethernet ports and PVDM4 DSP for voice and video services, two network modules, one integrated services card slot, 4GB DDR3 Dream and 4 GB flash memory.Cisco ISR4321 delivers 50Mbps thoughtput by default, with pay-as-you-grow performance, you can increase forwarding capacity to 100Mbps when needed, so the platform performance growth with your business, you only pay for the performance you need. According to security, ISR4321 support most advanced encryption – IPsec, SSL VPN and flex VPN.





Specification

Specification

ISR4321-V/K9 Specification

Description

Cisco ISR4321-V/K9 (2GE,2NIM,4G FLASH,4G DRAM,Voice Bundle)

Aggregate Throughput

50 Mbps to 100 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2

RJ-45-based ports

2

SFP-based ports

1

Enhanced service-module slots

0

Doublewide service-module slots

0

NIM slots

2

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

8 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

8 GB

External USB 2.0 slots (type A)

1

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port – RJ45 (up to 115.2 kbps)

1

Serial auxiliary port – RJ45

(up to 115.2 kbps)

1

Power-supply options

External: AC and PoE

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

1.5 to 0.6A

AC input surge current

90 A peak and less than 3 Arms per half cycle

Typical power (no modules) (watts)

36

Maximum power with AC power supply (watts)

125

Maximum power with PoE power supply (platform only) (watts)

260

Maximum endpoint PoE power available from PoE power supply (watts)

120



SMARTnet

SMARTnet



Product Name Detail
CON-OSE-ISR4321V SNTC-8X5X4OS Cisco ISR 4321 UC Bundle. PVDM4-32. UC L
CON-OSP-ISR4321V SNTC-24X7X4OS Cisco ISR 4321 UC Bundle. PVDM4-32. UC L
CON-OS-ISR4321V SNTC-8X5XNBDOS Cisco ISR 4321 UC Bundle. PVDM4-32. UC L
CON-PREM-ISR4321V SNTC-24X7X2OS Cisco ISR 4321 UC Bundle. PVDM4-32. UC L
CON-S2P-ISR4321V SNTC-24X7X2 Cisco ISR 4321 UC Bundle. PVDM4-32. UC L
CON-SNTE-ISR4321V SNTC-8X5X4 Cisco ISR 4321 UC Bundle. PVDM4-32. UC L
CON-SNTP-ISR4321V SNTC-24X7X4 Cisco ISR 4321 UC Bundle. PVDM4-32. UC L
CON-SNT-ISR4321V SNTC-8X5XNBD Cisco ISR 4321 UC Bundle. PVDM4-32. UC L
CON-SW-ISR4321V SNTC-NO RMA Cisco ISR 4321 UC Bundle. PVDM4-32. UC L
CON-3OSP-ISR4321V 3YR SNTC 24X7X4OS Cisco ISR 4321 Bundle. w/UC License. CUB
CON-3SNTP-ISR4321V 3YR SNTC 24X7X4 Cisco ISR 4321 Bundle. w/UC License. CUB



Length of contract required :
 All
 1 Year SMARTnet
 3 Year SMARTnet
 5 Year SMARTnet




Shipping&Payment

Shipping&Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery Options Estimated Delivery Time
 DHL 2-4 business days
 Fedex 2-4 business days
 Hong Kong EMS 5-10 business days
 Hong Kong Air Parcel 10-20 business days
 By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only, we will keep you posted for the tracking delivery schedule.

Deliver to port:
Itech Smartnet Limited will quote all destination charge prior once we have confirmed order.

Deliver to door:
Itech Smartnet Limited is responsible for transporting goods to door after you have made the payment.

Payment Methods
Warranty

Warranty

100% Low Price Guarantee:

Itech Smartnet Limited provides high-quality products at low wholesale price.

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are “New Sealed” or “Used / Refurbished”.
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us to enjoy the warranty.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured.

Return Material Authorization (RMA) Process:

 Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Months

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can’t correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
