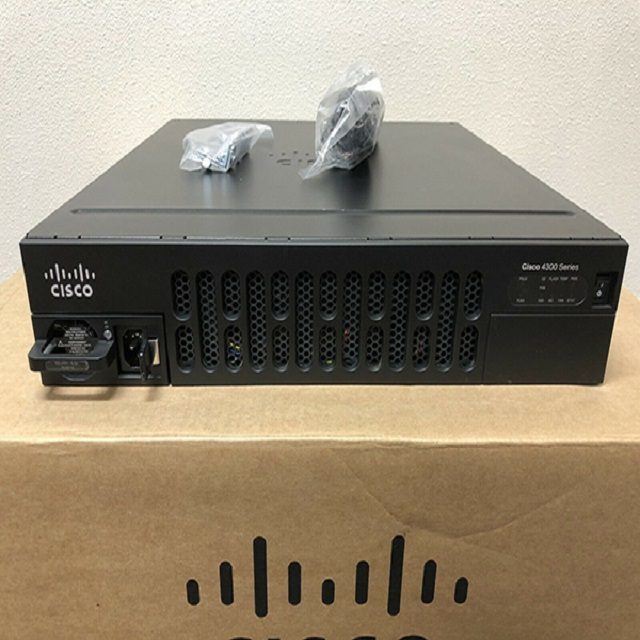

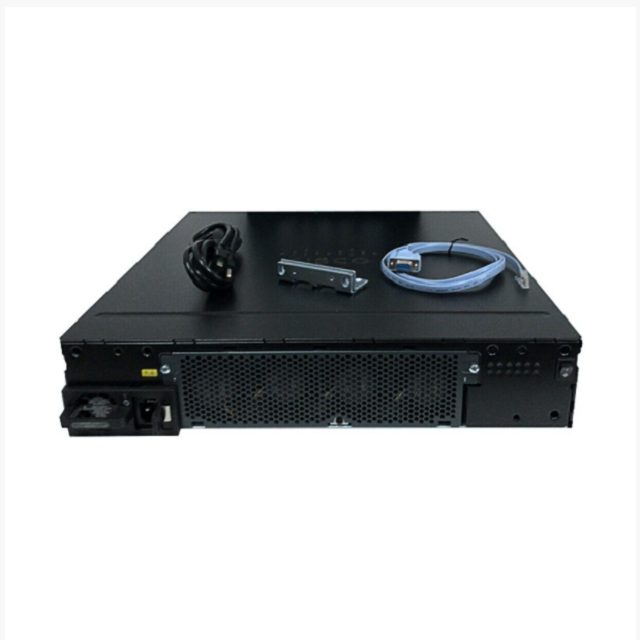

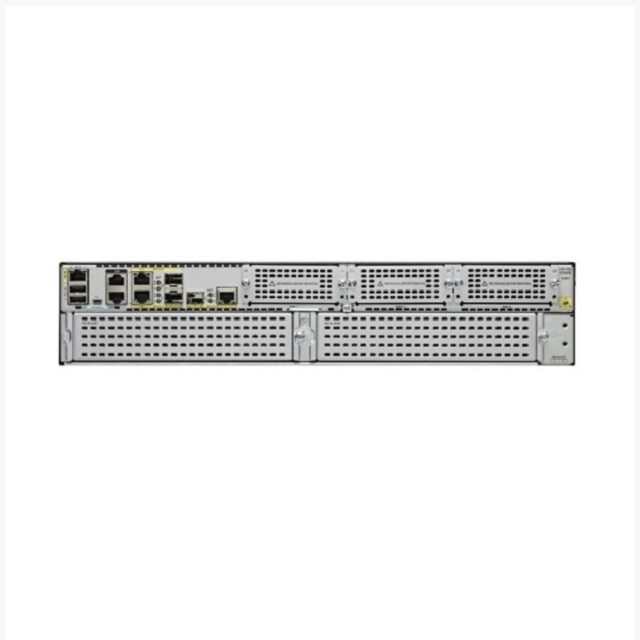

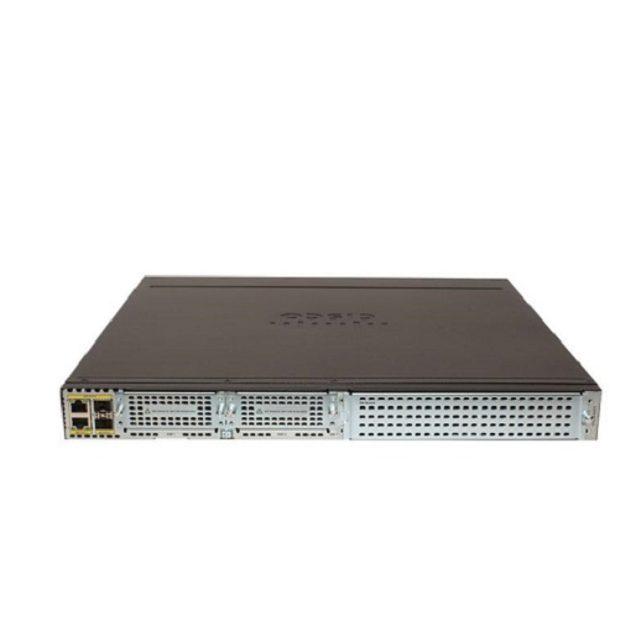

ISR4351/K9

Cisco ISR 4351 (3GE,3NIM,2SM,4G FLASH,4G DRAM,IPB)

Warranty: 1 year Networking Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex etc
Repairs: We offer repair service when necessary
Exchange: Exchange credit for your defective unit available
Send Inquiry
描述

描述

ISR4351/K9 Overview

Cisco 4351 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 200 Mbps to 400 Mbps aggregate throughput.





Specification

Specification

Cisco ISR4351/K9 Specification

Aggregate Throughput

200 Mbps to 400 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

3

SFP-based ports

3

Enhanced service-module slots

2

Doublewide service-module slots

1 (assumes no singlewide SM-X modules installed)

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

16 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

16 GB

External USB 2.0 slots (type A)

2

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port – RJ45 (up to 115.2 kbps)

1

Serial auxiliary port – RJ45

(up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC, and PoE

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

7.1 to 3.0A

AC input surge current

60 A peak and less than 12 Arms per half cycle

Typical power (no modules) (watts)

48

Maximum power with AC power supply (watts)

430

Maximum power with PoE power supply (platform only) (watts)

990

Maximum endpoint PoE power available from PoE power supply (watts)

500

SMARTnet

SMARTnet



Product Name Detail
CON-OSE-ISR4351K SNTC-8X5X4OS Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G
CON-OSP-ISR4351K SNTC-24X7X4OS Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G
CON-OS-ISR4351K SNTC-8X5XNBDOS Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G
CON-S2P-ISR4351K SNTC-24X7X2 Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G
CON-SNTE-ISR4351K SNTC-8X5X4 Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G
CON-SNTP-ISR4351K SNTC-24X7X4 Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G
CON-SNT-ISR4351K SNTC-8X5XNBD Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G
CON-SW-ISR4351K SNTC-NO RMA Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G
CON-3OSP-ISR4351K 3YR SNTC 24X7X4OS Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G
CON-3SNTP-ISR4351K 3YR SNTC 24X7X4 Cisco ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G



Length of contract required :
 All
 1 Year SMARTnet
 3 Year SMARTnet
 5 Year SMARTnet
