Description
S6730-H48X6C Overview
Huawei CloudEngine S6730-H series is full-featured 10 GE switches with 10 GE downlink ports.

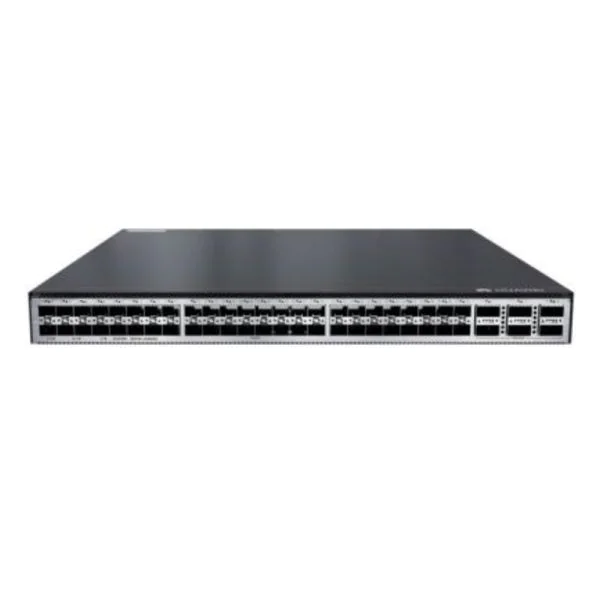

S6730-H48X6C
S6730-H48X6C Bundle (48*10GE SFP+ ports, 6*40GE/100GE QSFP28 ports, with license, without power module).
Specification
Specification
S6730-H48X6C Specification |
|
|
Fixed ports |
48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Chassis height(U) |
1U |
|
Input voltage |
• AC Power – Rated AC voltage: 100V to 240V AC; 50/60 Hz – Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power – Rated DC voltage: –48V～–60V – Max. DC voltage：-38.4V DC～-72V DC |
|
Input current |
AC 600W：Max 8A DC 1000W：Max 30A |
|
Maximum power consumption |
274W |
|
Minimum power consumption |
97W |
|
Operating temperature |
• 0–1800 m altitude: -5°C to 45°C • 1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m. |
|
Storage temperature |
-40-70℃ |
|
Operating altitude |
5000 m |
|
Noise (sound pressure at normal temperature) |
65dB(A) |
|
Surge protection specification
|
AC power interface: differential mode: ±6kV: common mode: ±6kV DC power interface: differential mode: ±2kV: common mode: ±4kV |
|
Power supply type |
600W AC Power 1000W DC Power |
|
Relative humidity |
5% to 95% (non-condensing) |
|
Fans |
4, Fan modules are pluggable |
|
Heat dissipation |
Heat dissipation with fan, intelligent fan speed adjustment |
|
MAC |
Up to 384K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
|
VLAN |
4K VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
