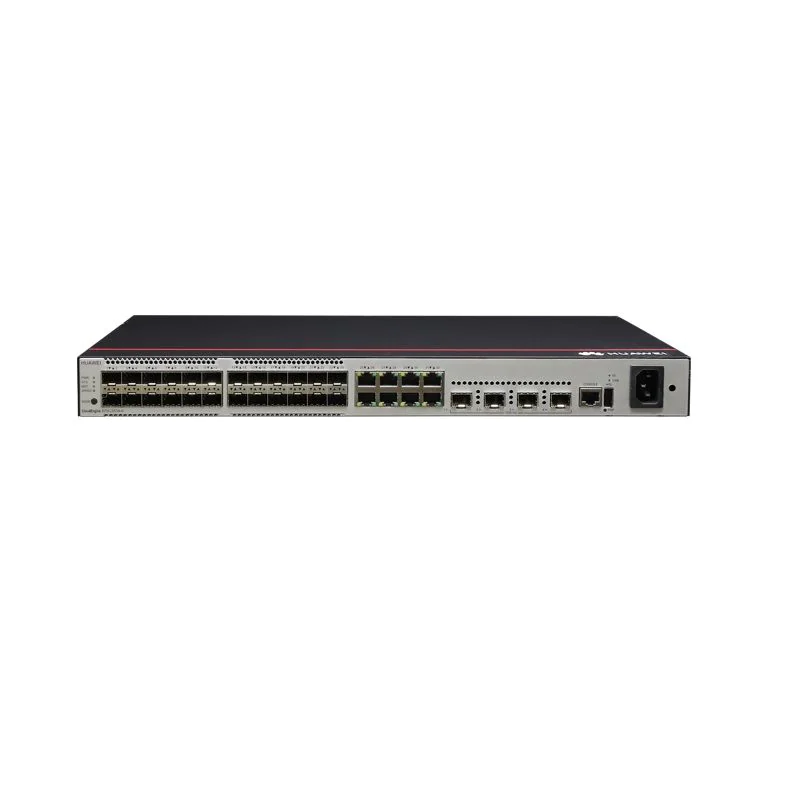

The S5735-L32ST4X-A1 from the Huawei CloudEngine S5700 Series Switches adopts 24 Gigabit SFP, 8 10/100 / 1000Base-T Ethernet port, 4 10G SFP +, AC power supply, front maintenance.
Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12 C48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports.
| S5735-L32ST4X-A1 Specification | |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) | |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Typical power consumption [W] | 53.2 W |
| Typical heat dissipation [BTU/hour] | 181.52 BTU/hour |
| Maximum power consumption [W] | 66.8 W |
| Maximum heat dissipation [BTU/hour] | 227.93 BTU/hour |
| MTBF [year] | 58.44 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 46.8 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 35 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: | |
| The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year. | |
| The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year. | |
| The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year. | |
| The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. | |
| The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. | |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| High-Voltage DC input: 240 V DC | |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| High-Voltage DC input: 190 V DC to 290 V DC | |
| Maximum input current [A] | 2:00 AM |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
