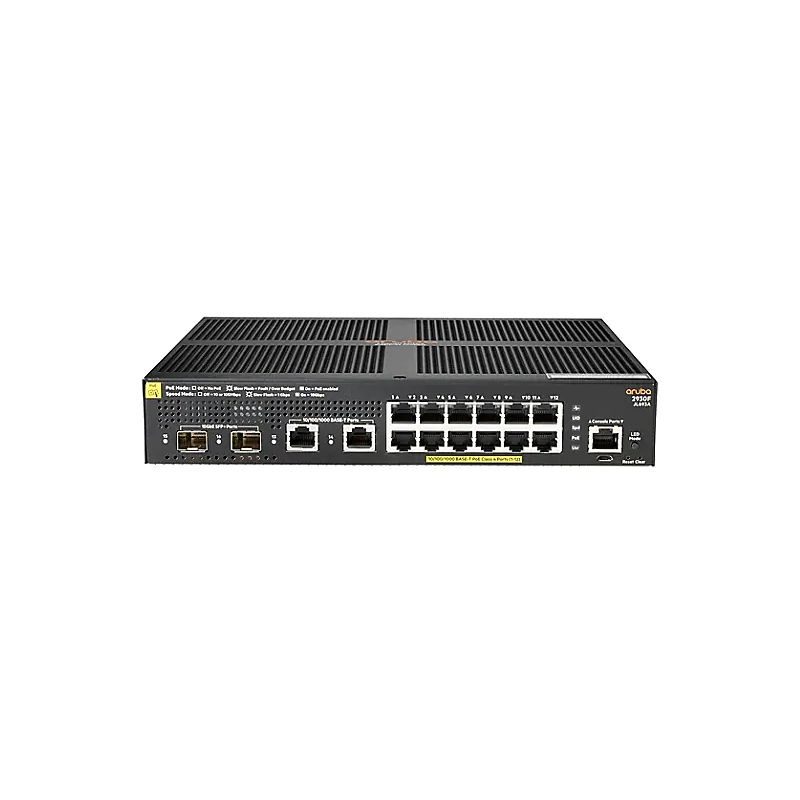

JL693A Overview
The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users.
Specification
Specification
JL693A Specification |
|
|
General |
|
|
Device Type |
Switch – 12 ports – L3 – managed – stackable |
|
Enclosure Type |
Rack-mountable 1U |
|
Subtype |
Gigabit Ethernet |
|
Ports |
12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000 |
|
Power Over Ethernet (PoE) |
PoE+ |
|
PoE Budget |
139 W |
|
Performance |
Throughput: 41.7 Mpps ¦ Switching capacity: 68 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs |
|
Capacity |
Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 |
|
MAC Address Table Size |
32K entries |
|
Routing Protocol |
OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
|
Remote Management Protocol |
SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON |
|
Encryption Algorithm |
MD5, SSL |
|
Authentication Method |
RADIUS, PAP, CHAP, TACACS, TACACS+ |
|
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
|
Processor |
1 x ARM Cortex-A9: 1.016 GHz |
|
RAM |
1 GB DDR3 SDRAM |
|
Flash Memory |
4 GB |
|
Expansion / Connectivity |
|
|
Interfaces |
12 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 2 x 1000Base-T RJ-45 |
|
Expansion Slots |
1 (total) / 1 (free) x expansion slot |
|
Installed Modules Qty (Max) |
0 (installed) / 2 (max) |
|
Power |
|
|
Power Device |
Internal power supply |
|
Installed Qty |
1 |
|
Voltage Required |
AC 120/230 V (50/60 Hz) |
