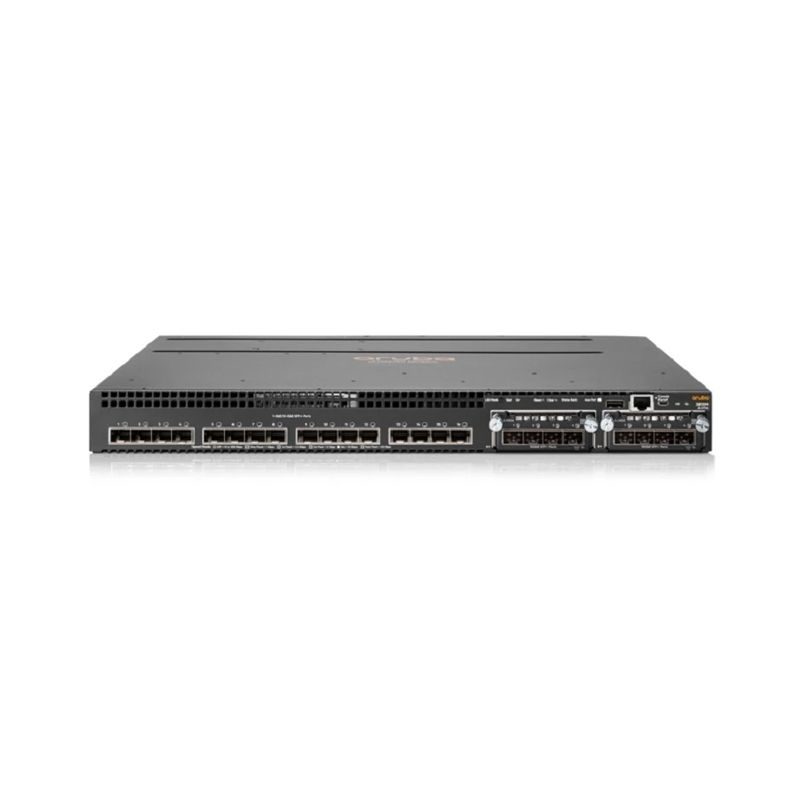

JL430A Overview
The Aruba JL430A Switch provides performance and resiliency for enterprises, SMBs, and branch office networks.
Specification
Specification
JL430A Specification |
|
|
General |
|
|
Device Type |
Switch – 24 ports – managed |
|
Enclosure Type |
Rack-mountable 1U |
|
Subtype |
Gigabit Ethernet |
|
Ports |
24 x 10/100/1000 |
|
Performance |
Routing/switching capacity: 160 Gbps ¦ Switching fabric bandwidth: 169 Gbps ¦ Latency (1 Gbps): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Throughput (64-byte packet size): 95.2 Mpps |
|
Capacity |
Routing tables: 10000 |
|
MAC Address Table Size |
64K entries |
|
Routing Protocol |
OSPF, BGP-4, RIP-1, RIP-2, BGP, OSPFv2, OSPFv3 |
|
Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, SSH-2, XRMON |
|
Encryption Algorithm |
SSL |
|
Authentication Method |
RADIUS, TACACS+ |
|
Features |
Flow control, full duplex capability, DHCP support, BOOTP support, VLAN support, Syslog support, DiffServ support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Jumbo Frames support, LLDP support, Link Aggregation Control Protocol (LACP) |
|
Compliant Standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX |
|
Expansion / Connectivity |
|
|
Interfaces |
24 x 1000Base-T RJ-45 ¦ 1 x network stack device ;1 x console RJ-45; 1 x management (LAN) RJ-45 ;1 x micro-USB |
|
Expansion Slots |
1 (total) / 1 (free) x expansion slot |
|
Power |
|
|
Power Device |
Internal power supply – hot-plug |
|
Installed Qty |
1 (installed) / 2 (max) |
|
Power Redundancy |
Yes |
|
Power Redundancy Scheme |
1+1 (with optional power supply) |
|
Power Provided |
250 Watt |
|
Voltage Required |
DC 12 V |
|
Miscellaneous |
|
|
Compliant Standards |
FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 60950, UL 60950, UL 60950-1, EN 60825, CAN/CSA C22.2 No. 60950-1, EN 61000-3-3:2008, CAN/CSA C22.2 No. 60950, EN 61000-3-2:2006+A1:2009+A2:2009, VCCI Class A, EN55022:2010, EN55024:2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2013 |
|
Dimensions |
|
|
Width |
17.4 in |
|
Depth |
17 in |
|
Height |
1.7 in |
|
Environmental Parameters |
|
|
Min Operating Temperature |
32 °F |
|
Max Operating Temperature |
113 °F |
|
Humidity Range Operating |
15 – 95% (non-condensing) |
|
Min Storage Temperature |
-40 °F |
|
Max Storage Temperature |
158 °F |
|
Humidity Range Storage |
15 – 90% (non-condensing) |
