JL258A

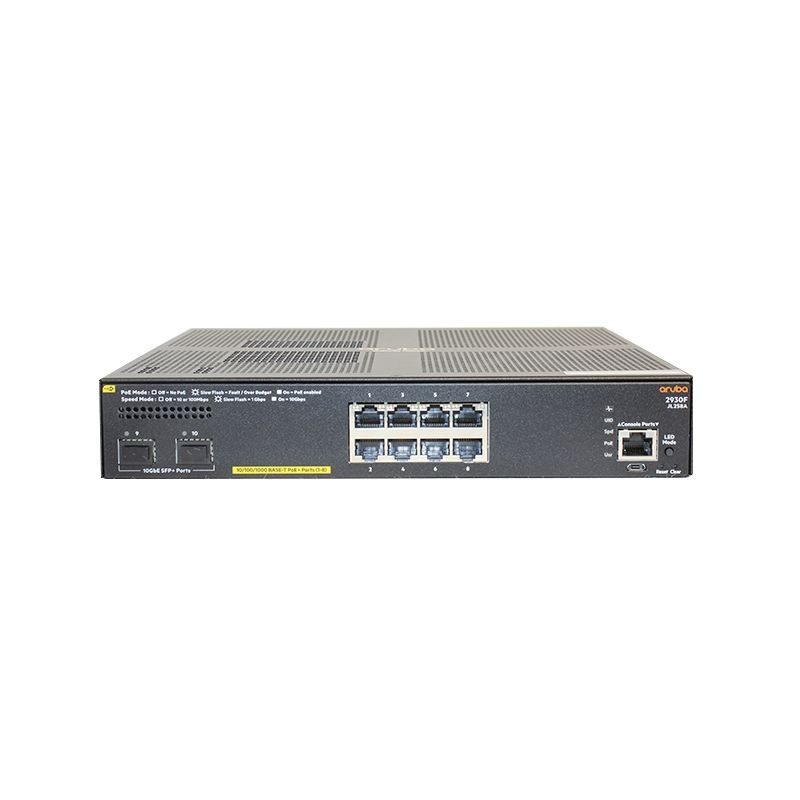

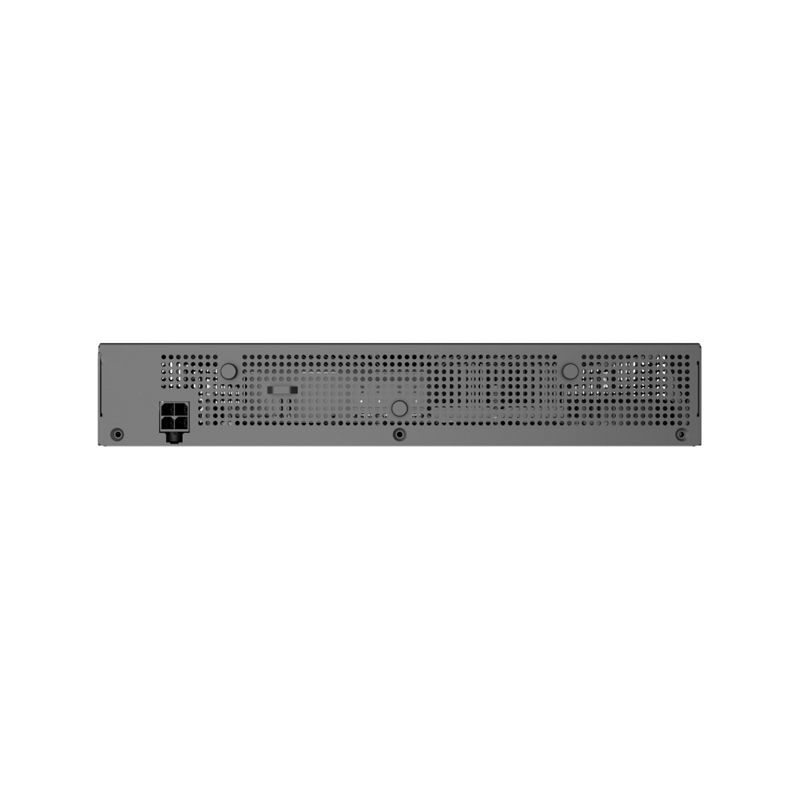

HPE JL258A -Aruba 2930F 8G PoE+ 2SFP+ Switch

Warranty: 1 year Networking Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex etc



Send Inquiry
分类： 标签：
描述

描述

JL258A Overview

Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This compact JL258A has 8 x 10/100/1000 access ports and 2 x 1000/10G SFP+ transceiver slots for high speed connectivity. PoE+ is supported with a power budget of 125 Watts. This model is fanless for silent operation.



Specification

Specification



JL258A Specification

Type

Aruba 2930F 8G PoE+ 2SFP+ Switch

System specifications

I/O ports and slots

8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)

Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only

Additional ports and slots

1 dual-personality (RJ-45 or USB micro-B) serial console port

Memory and processor

Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM

Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC

Management

Aruba AirWave Network Management; IMC – Intelligent Management Center

Command-line interface

Web browser

Configuration menu

SNMP manager

Telnet

RMON1

FTP

Out-of-band management (serial RS-232C or micro USB)

Performance specifications

1000 Mb Latency

< 3.8 μs (64-byte packets)

10 Gbps Latency

< 1.6 μs (64-byte packets)

Throughput

up to 41.7 Mp/s

Switching capacity

56 Gb/s

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

32768 entries

Physical specifications

Dimensions

4.39 x 25.4 x 25.4 cm ( 1.73 x 10 x 10 in)

1U height

Electrical specifications

80plus.org Certification

N/A

Description

Power supply meets DoE VI certification

Maximum heat dissipation

558.09 kJ/hr ( 529 BTU/hr)

Voltage

90 – 264 V ac, rated

Current

1.5/0.8 A

Maximum power rating

155 W

Idle power

N/A

Frequency

50/60 Hz

PoE power

125 W PoE+

Environmental specifications

Operating temperature

0°C to 45°C (32°F to 113°F)

up to 5000 Feet

– 0C to 40C (32F to 104F) up to 10000 Feet

Operating relative humidity

15% to 95% @ 40°C ( 104°F)

noncondensing

Nonoperating/Storage temperature

-40°C to 70°C (-40°F to 158°F)

up to 15000 Feet

Nonoperating/Storage temperature

15% to 95% @65°C ( 149°F)

noncondensing

Acoustic

Power: 0 dB, Pressure: 0 dB Fanless

Airflow direction

Side-to-side

Safety certifications

Safety

UL 60950-1, 2nd Edition

EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

IEC 60950-1:2005 +A1:2009 +A2:2013

CSA 22.2 No. 60950-1-07 2nd

EN 60825-1:2007 / IEC 60825-1:2007 Class 1

Emissions

EN 55022:2010/CISPR 22 Class A

FCC CFR 47 Part 15 Class A

VCCI Class A; ICES-003 Class A

CNS 13438

Immunity

Generic:EN 55024:2010/CISPR 24

ESDIEC 61000-4-2

RadiatedIEC 61000-4-3

EFT/BurstIEC 61000-4-4

SurgeIEC 61000-4-5

ConductedIEC 61000-4-6

Power frequency magnetic fieldIEC 61000-4-8

Voltage dips and interruptionsIEC 61000-4-11

HarmonicsIEC/EN 61000-3-2

FlickerIEC/EN 61000-3-3
