C9300-24P-E

Catalyst 9300 24-port PoE+, Network Essentials.

Warranty: 1 year Networking Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex etc
Repairs: We offer repair service when necessary
Exchange: Exchange credit for your defective unit available
Send Inquiry
描述

描述

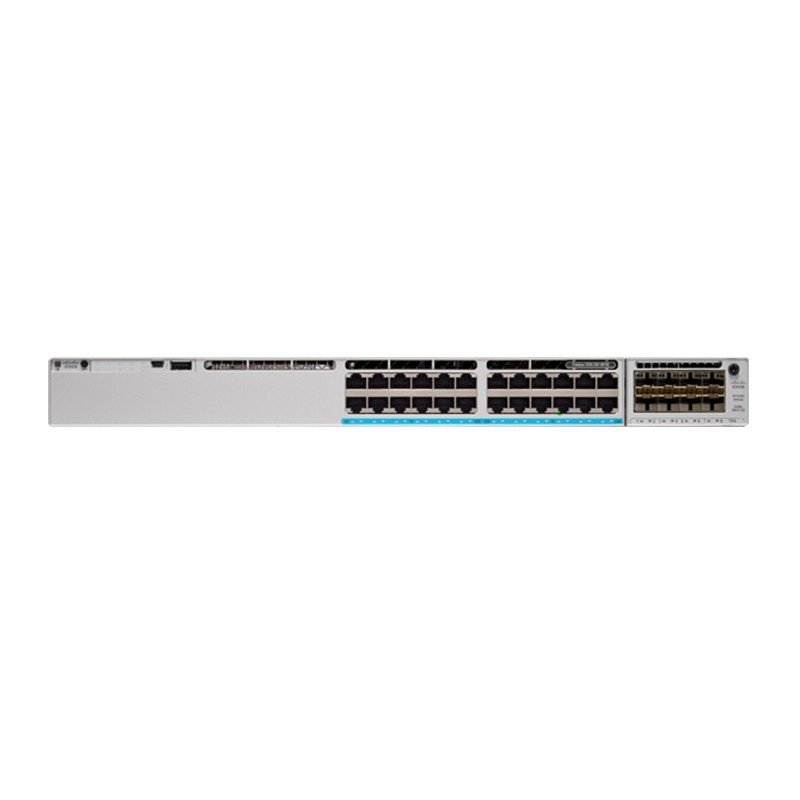

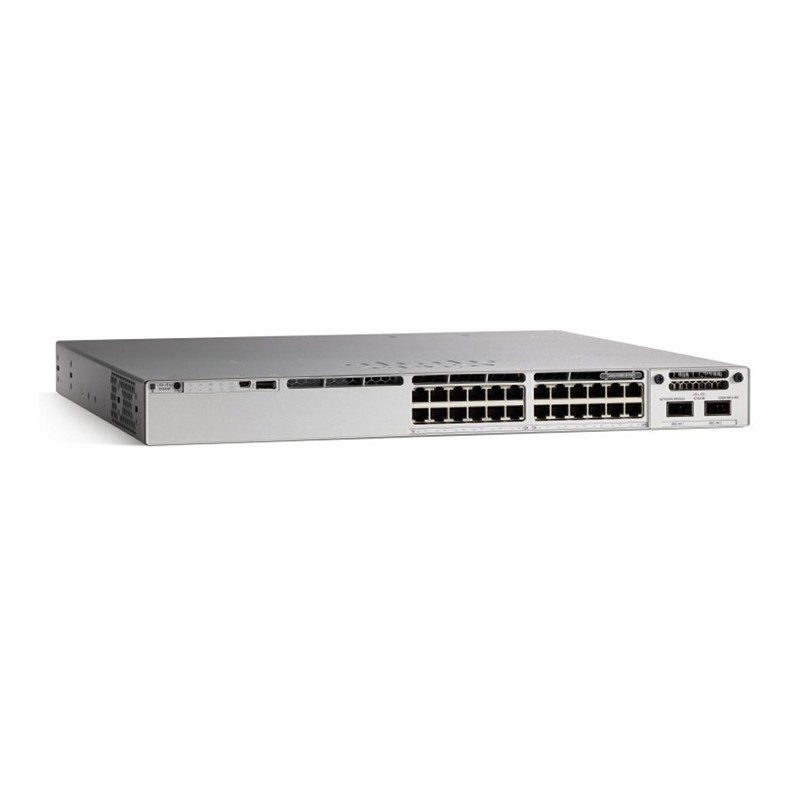

C9300-24P-E Overview

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24P-E is 24-port PoE+, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.





Specification

Specification

C9300-24P-E Specification

Part Number

C9300-24P-E

Product Description

Catalyst 9300 24-port PoE+, Network Essentials

Total 10/100/1000 or Multigigabit copper ports

24 POE+

Default AC power supply

715W AC

Available PoE power

445W

Cisco StackWise-480

Yes

Cisco StackPower

Yes

Default power supply

PWR-C1-715WAC-P/2

Switching capacity

208 Gbps on 24-port Gigabit Ethernet model

Stacking bandwidth

480 Gbps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

32,000 (24,000 direct routes and 8000 indirect routes)

IPv4 routing entries

32,000

IPv6 routing entries

16,000

Multicast routing scale

8000

QoS scale entries

5120

ACL scale entries

5120

Packet buffer per SKU

16 MB buffer for 24- or 48-port Gigabit Ethernet models

FNF entries

64,000 flow on 24- and 48-port Gigabit Ethernet models

DRAM

8 GB

Flash

16 GB

VLAN IDs

4000

Total Switched Virtual Interfaces (SVIs)

2000

Jumbo frames

9198 bytes

Total routed ports per 9300 Series stack

208

Wireless bandwidth per switch

Up to 48 Gbps on 24-port Gigabit Ethernet model

Forwarding rate

154.76 Mpps

Dimensions (H x W x D)

1.73 x 17.5 x 17.5 Inches

Weight

16.33 Pounds

Mean time between failures (hours)

299,000
