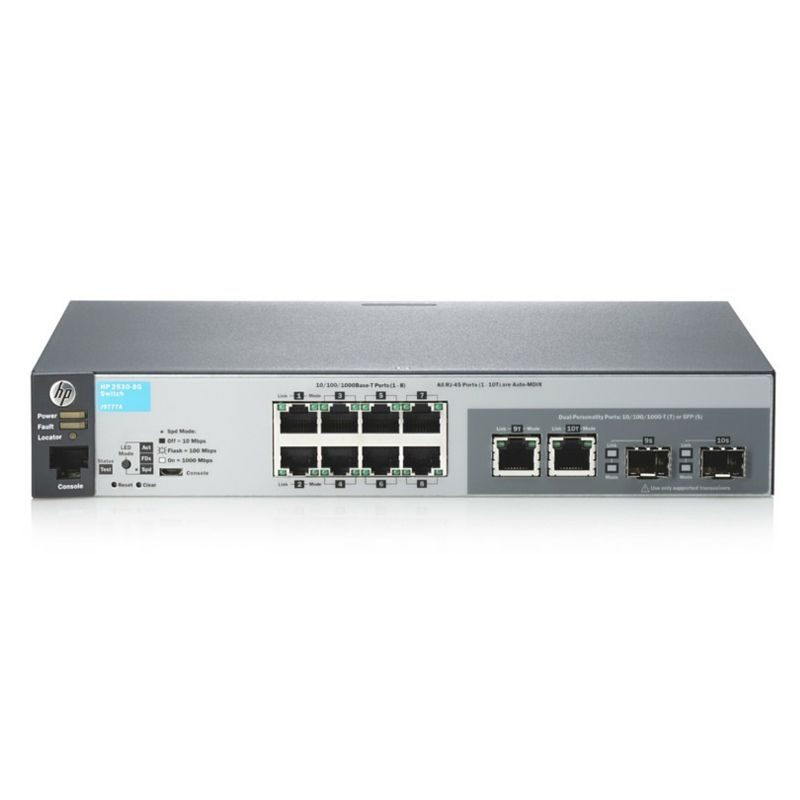

J9777A Overview

Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. This J9777A has 8 x 10/100/1000 ports. Additionally the switch has two Gigabit 10/100/1000 dual personality shared with two SFP ports.

Specification

J9777A Specifications
Type	Aruba 2530-8G Switch
System specifications
Ports	· 8 × RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);· 2 × dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports. · 1 dual-personality (RJ-45 or USB micro-B) serial console port.
Memory and processor	Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated.
Mounting	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting.
Management	IMC – Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or MicroUSB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB.
Performance (IPv6 Ready Certified)
1000 Mb latency	< 2.6 µs (LIFO 64-byte packets)
100 Mb Latency	< 7.4 µs (LIFO 64-byte packets)
ThrougArubaut	Up to 14.8 million pps (64-byte packets)
Switching capacity	20 Gb/s
MAC address table size	16000 entries
Physical specifications
Dimensions (W x D x H)	25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height)
Weight	0.91 kg (2.0 lb)
Electrical specifications
Maximum heat dissipation	63 BTU/hr (66.46 kJ/hr), (switch only: 63 BTU/hr)
Voltage	100 – 127 / 200 – 240 V ac
Current	0.5 A
Idle power1	13.6 W
Maximum power rating2	18.6 W
PoE power	N/A
Frequency	50/60 Hz
