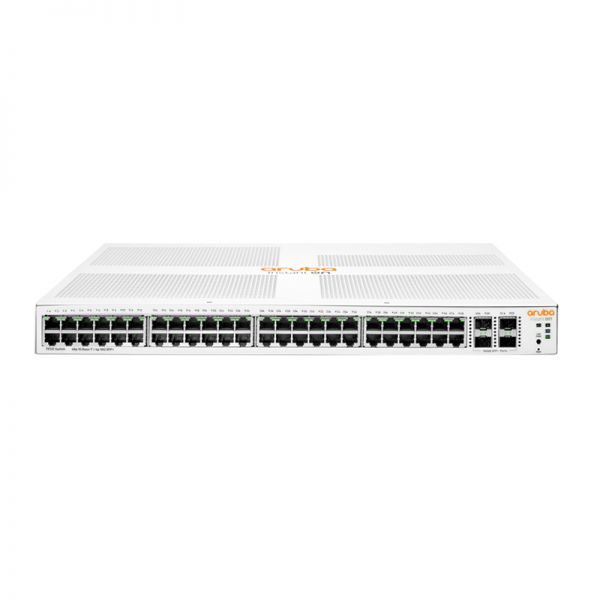

JL686A

JL686A Specification

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T);

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ 1/10GbE ports

Dimension

17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height)

Processor and memory

ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

Throughput (Mpps)

130.95 Mpps

Switching capacity

176 Gbps

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative

humidity

15% to 95% @ 104°F (40°C)

Nonoperating/Storage

temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage

relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Idle power

34.5 W

PoE

370 W Class 4 PoE

Power Supply

Internal power supply
