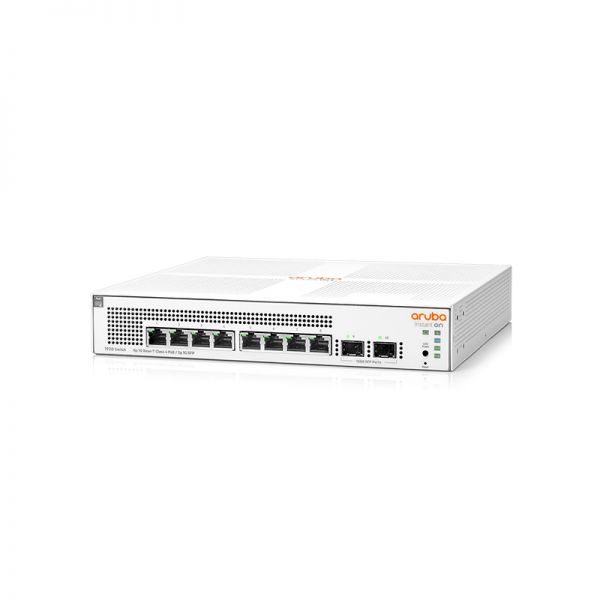

JL681A

JL681A Specification

I/O ports and slots

8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP 1GbE ports

Dimension

10(w) x 10(d) x 1.73(h) in (25.4 x 25.4 x 4.39 cm) (1U height)

Processor and memory

ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

Throughput (Mpps)

14.88 Mpps

Switching capacity

20 Gbps

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative

humidity

15% to 95% @ 104°F (40°C)

Nonoperating/Storage

temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage

relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Idle power

11.7 W

PoE

124 W Class 4 PoE

Power Supply

Internal power supply
