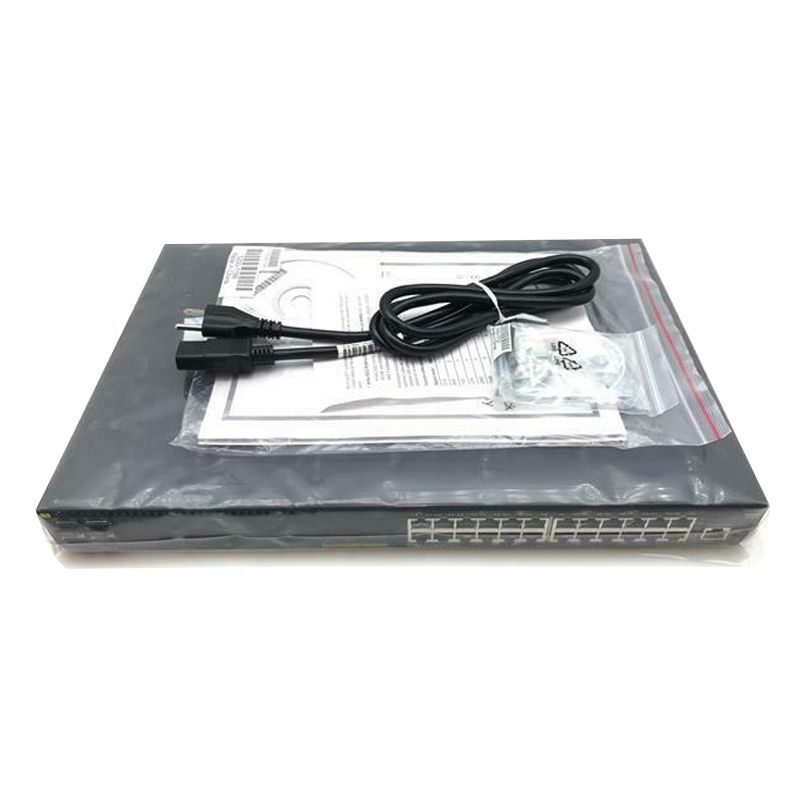

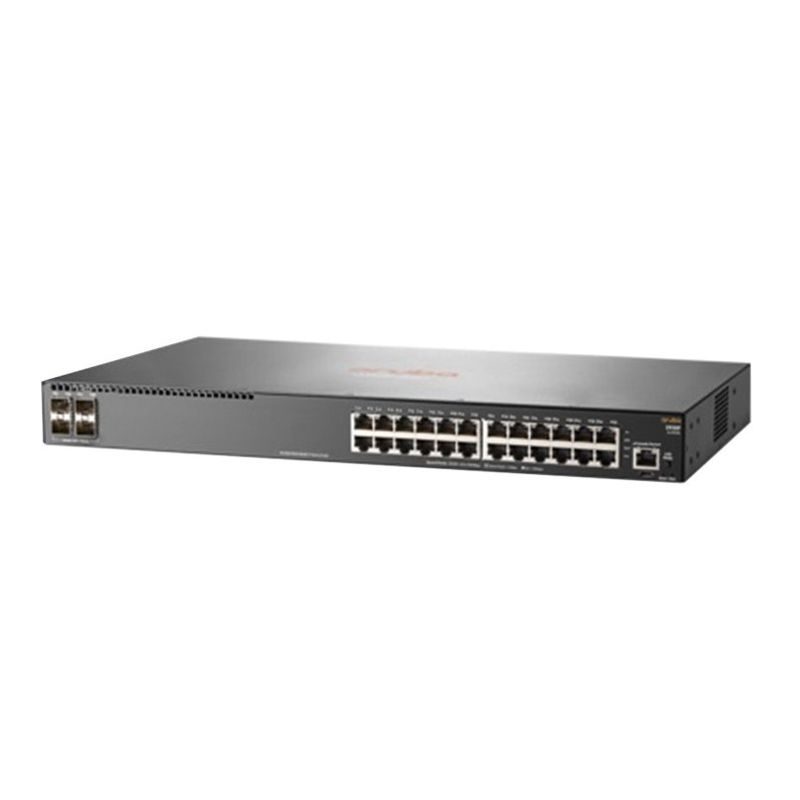

HPE JL261A -Aruba 2930F 24G PoE+ 4SFP Switch

Warranty: 1 year Networking Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex etc





Send Inquiry
分类： 标签：
描述

描述

JL261A Overview

Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL261A has 24 x 10/100/1000 PoE+ ports and 4 x Gigabit SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.



Specification

Specification



JL261A Specification

Type

Aruba 2930F 24G PoE+ 4SFP Switch

System specifications

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only

Additional ports and slots

1 dual-personality (RJ-45 or USB micro-B) serial console port

Memory and processor

Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM

Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC

Management

Aruba AirWave Network Management; IMC – Intelligent Management Center

Command-line interface

Web browser

Configuration menu

SNMP manager

Telnet

RMON1

FTP

Out-of-band management (serial RS-232C or micro USB)

Performance specifications

1000 Mb Latency

< 3.8 μs (64-byte packets)

10 Gbps Latency

N/A

Throughput

up to 41.7 Mp/s

Switching capacity

56 Gb/s

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

MAC address table size

32768 entries

Physical specifications

Dimensions

4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)

1U height

Electrical specifications

80plus.org Certification

Silver

Description

N/A

Maximum heat dissipation

1601.49 kJ/hr (1518 BTU/hr)

Voltage

100 – 127 / 200 – 240 V ac, rated

Current

4.9/2.4 A

Maximum power rating

445 W

Idle power

36.8 W

Frequency

50/60 Hz

PoE power

370 W PoE+
