| Warranty: | 1 year Networking Warranty Included |
| Shipping: | Worldwide shipping via DHL, UPS, Fedex etc |
| Repairs: | We offer repair service when necessary |
| Exchange: | Exchange credit for your defective unit available |

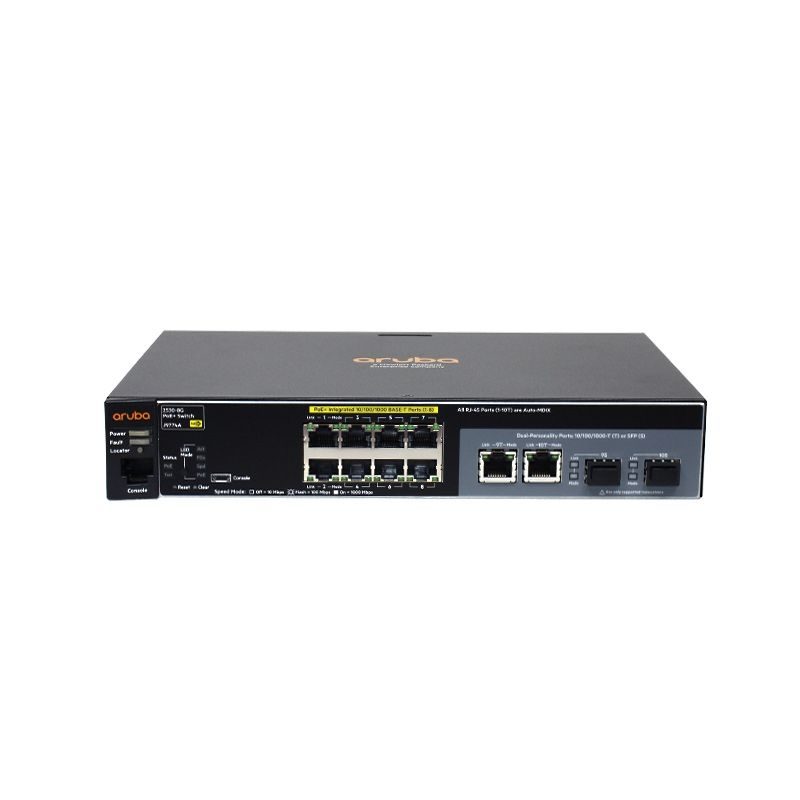

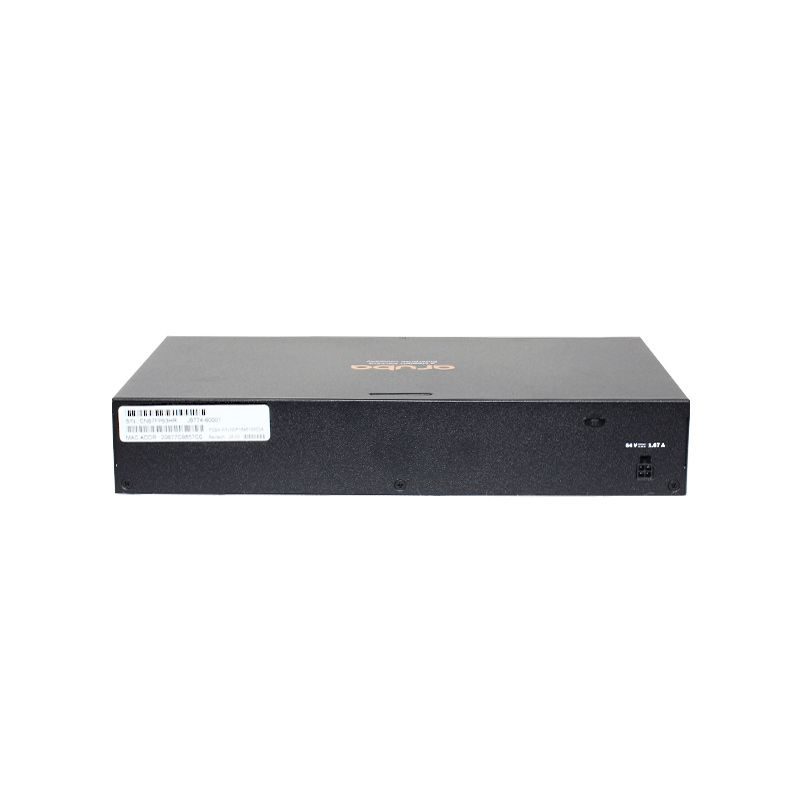

Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. This J9774A has 8 x 10/100/1000 PoE+ ports with a power budget of 67W. Additionally the switch has two Gigabit 10/100/1000 dual personality shared with two SFP ports.
J9774A Specifications |
|
|
Type |
Aruba 2530-8G-PoE+ Switch |
|
System specifications |
|
|
Ports |
· 8 × RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 2 × dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) · 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
|
Memory and processor |
Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
|
Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
|
Management |
IMC – Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
|
Performance (IPv6 Ready Certified) |
|
|
1000 Mb latency |
< 2.6 µs (LIFO 64-byte packets) |
|
100 Mb Latency |
< 7.4µs (LIFO 64-byte packets) |
|
Throughput |
Up to 14.8 million pps (64-byte packets) |
|
Switching capacity |
20 Gb/s |
|
MAC address table size |
16000 entries |
|
Physical specifications |
|
|
Dimensions (W x D x H) |
25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
|
Weight |
1 kg (2.2 lb) |
|
Electrical specifications |
|
|
Maximum heat dissipation |
65 BTU/hr (68.58 kJ/hr), (switch only: 65 BTU/hr; combined switch + max. PoE devices: 293 BTU/hr) |
|
Voltage |
100 – 127 / 200 – 240 V ac |
|
Current |
1.4 A |
|
Idle power |
13.4 W |
|
Maximum power rating |
86 W |
|
PoE power |
67 W |
|
Frequency |
50/60 Hz |
Delivery
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| Delivery Options | Estimated Delivery Time |
|---|---|
 DHL |
2-4 business days |
 Fedex |
2-4 business days |
 Hong Kong EMS |
5-10 business days |
 Hong Kong Air Parcel |
10-20 business days |
 By Sea |
10-20 business days |
Notice:
Above mentioned information are just for your reference only, we will keep you posted for the tracking delivery schedule.
Deliver to port:
Itech Smartnet Limited will quote all destination charge prior once we have confirmed order.
Deliver to door:
Itech Smartnet Limited is responsible for transporting goods to door after you have made the payment.
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|
100% Low Price Guarantee:
Itech Smartnet Limited provides high-quality products at low wholesale price.
100% Quality Assurance:
All items are ORIGINAL and GENUINE only.
Item conditions are “New Sealed” or “Used / Refurbished”.
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.
Free CCIE Technical Support:
Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us to enjoy the warranty.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured.
Return Material Authorization (RMA) Process:
Standard Hardware Warranty Policy:
Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Months
The Support Contacts:
If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can’t correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
