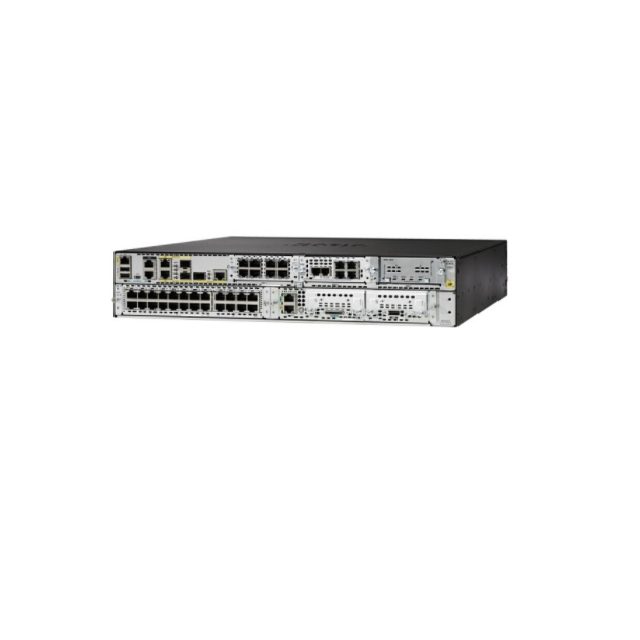

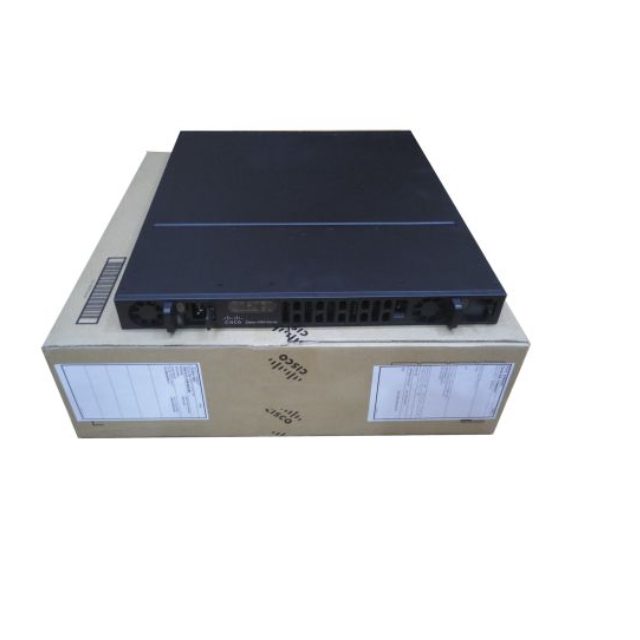

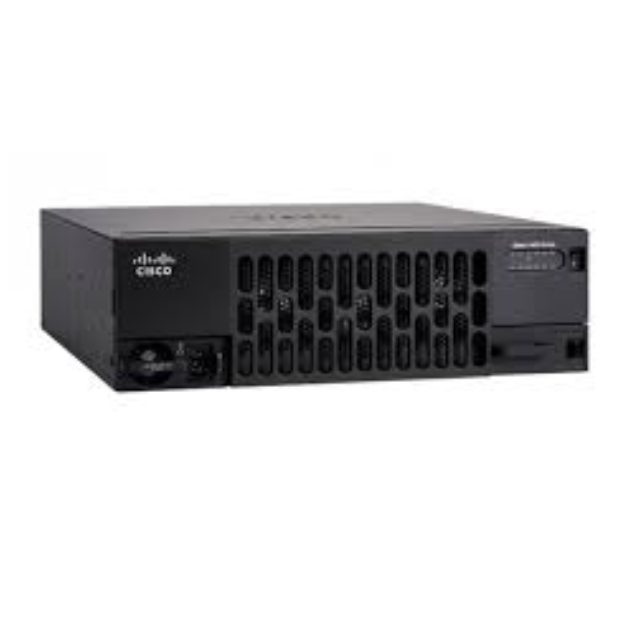

ISR4351-V/K9

Cisco ISR 4351 UC Bundle, PVDM4-64, UC License

Warranty: 1 year Networking Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex etc
Repairs: We offer repair service when necessary
Exchange: Exchange credit for your defective unit available
Send Inquiry
描述

描述

ISR4351-V/K9 Overview

Cisco ISR4351-V/K9 is ideally designed for the mid-size or even large enterprise branch environment, deliver advanced services and unprecdent level of WAN intelligence with VOIP features enabled.Scalability, High-performance, Network Services, Security and smart router is made to run multiple services.Advanced network services enable the branch to utilize the WAN intelligently is really what ISR4351/K9 all about.With feature like , Voice, AVC, performance routing (PfR), WAAS make this platform obviously more than a router, moreover, the Cisco Integrated Services Router 4351 include supporting OnePk, AppNav, making the platform easier to scale the network and application integration.

Performance is the key to enabling advanced branch services or scaling across the enterprise. With IOS XE and dedicate control, data, and service CPUs, these platform is unmatched in the industry.ISR 4351 delivering 200Mbps-400Mbps performance on demand,with pay-as-you-grow performance, you can increase forwarding capacity when needed, so the platform performance growth with your business, you only pay for the performance you need. This greatly simplifies the portfolio with only two platforms needed to cover 200Mpbs through 400Mbps performance levels. The Cisco Integrated Service router 4351 includes another industry first, which support service containers, these pluggable visual machines utilize dedicated CPU, memory and storage within platform for tightly couple the network services without needs for additional modules.





Specification

Specification

ISR4351-V/K9 Specification

Description

Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle)

Aggregate Throughput

200 Mbps to 400 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

3

SFP-based ports

3

Enhanced service-module slots

2

Doublewide service-module slots

1 (assumes no singlewide SM-X modules installed)

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

16 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

16 GB

External USB 2.0 slots (type A)

2

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port – RJ45 (up to 115.2 kbps)

1

Serial auxiliary port – RJ45

(up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC, and PoE

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

7.1 to 3.0A

AC input surge current

60 A peak and less than 12 Arms per half cycle

Typical power (no modules) (watts)

48

Maximum power with AC power supply (watts)

430

Maximum power with PoE power supply (platform only) (watts)

990

Maximum endpoint PoE power available from PoE power supply (watts)

500

SMARTnet

SMARTnet



Product Name Detail
CON-OSE-ISR4351V SNTC-8X5X4OS Cisco ISR 4351 UC Bundle. PVDM4-64. UC L
CON-OSP-ISR4351V SNTC-24X7X4OS Cisco ISR 4351 UC Bundle. PVDM4-64. UC L
CON-OS-ISR4351V SNTC-8X5XNBDOS Cisco ISR 4351 UC Bundle. PVDM4-64. UC L
CON-S2P-ISR4351V SNTC-24X7X2 Cisco ISR 4351 UC Bundle. PVDM4-64. UC L
CON-SNTE-ISR4351V SNTC-8X5X4 Cisco ISR 4351 UC Bundle. PVDM4-64. UC L
CON-SNTP-ISR4351V SNTC-24X7X4 Cisco ISR 4351 UC Bundle. PVDM4-64. UC L
CON-SNT-ISR4351V SNTC-8X5XNBD Cisco ISR 4351 UC Bundle. PVDM4-64. UC L
CON-SW-ISR4351V SNTC-NO RMA Cisco ISR 4351 UC Bundle. PVDM4-64. UC L
CON-3OSP-ISR4351V 3YR SNTC 24X7X4OS Cisco ISR 4351 UC Bu
CON-3SNTP-ISR4351V 3YR SNTC 24X7X4 Cisco ISR 4351 UC Bu
CON-3SNT-ISR4351V 3YR SNTC 8X5XNBD Cisco ISR 4351 UC Bundle. PVDM4-64. UC



Length of contract required :
 All
 1 Year SMARTnet
 3 Year SMARTnet
 5 Year SMARTnet




Shipping&Payment

Shipping&Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery Options Estimated Delivery Time
 DHL 2-4 business days
 Fedex 2-4 business days
 Hong Kong EMS 5-10 business days
 Hong Kong Air Parcel 10-20 business days
 By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only, we will keep you posted for the tracking delivery schedule.

Deliver to port:
Itech Smartnet Limited will quote all destination charge prior once we have confirmed order.

Deliver to door:
Itech Smartnet Limited is responsible for transporting goods to door after you have made the payment.

Payment Methods

Warranty

Warranty

100% Low Price Guarantee:

Itech Smartnet Limited provides high-quality products at low wholesale price.

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are “New Sealed” or “Used / Refurbished”.
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us to enjoy the warranty.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured.

Return Material Authorization (RMA) Process:

 Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Months

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can’t correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
